S-Geobor Large Diameter Wireline Coring System Wireline Core Drilling Barrel

Name: SGeobor Large Diameter Wireline Coring System Wireline Core Drilling Barrel
Brand: ROSCHEN
Price: 1 USD

Buy cheap S-Geobor Large Diameter Wireline Coring System Wireline Core Drilling Barrel product

Brand Name : ROSCHEN

Model Number : Geobor S 146, CSK 146

Certification : ISO

Place of Origin : CHINA

MOQ : 1 set

Price : Negotiate

Supply Ability : 100000000 set

Packaging Details : Wooden box

Diamond Core Drilling : Wireline Core barrel Drilling

Drill Machine : Drilling Rig

Mining : Australia Mining

Core Barrels : Boart Longyear Core Barrel

Standard : DCDMA

Parts : Wireline Core Drill Parts

Warranty : 1 year

Usage : Underground drilling

Core Barrel Size : NMLC Triple Tube Core Barrels

Sizes : rock core barrel sizes

Item No : Drilling and Chipping Solid Rock

Core Barrel Tools : Coring In-Hole Tools

Specifications : NQ HQ PQ core barrel outer tube

Mazier Core Barrel : M101 core barrel

Applications : Copper Mining Drilling

Contact Now

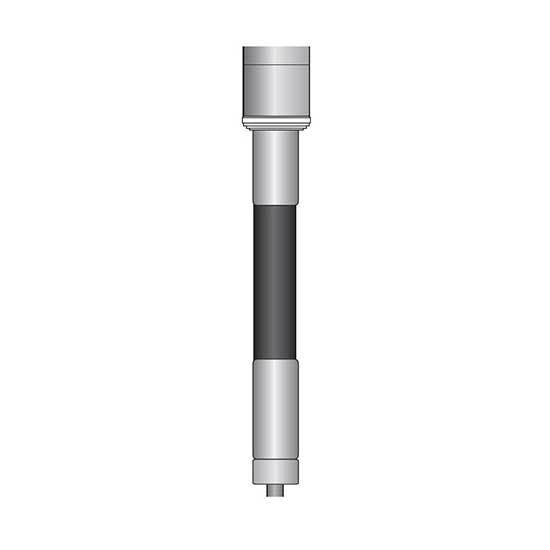

S-Geobor Large Diameter Wireline Coring System Wireline Core Drilling Barrel

Geobor S 146 Wireline Triple Tube Core Barrel

The S Geobor wireline core barrel with large diameter 5.75" (146 mm) OD, was designed for large diameter core sampling from hard, to extremely soft and clayey formations, using a wide range of drilling methods. It is available in usable lengths of 5ft (1.5m) and 10ft (3 m) sections.

This extremely versatile S Geobor system can be used as a double or triple core barrel to retrieve 4" (101mm) core sample, large diameter (100mm) shelby tube sampling, non core drilling, and water loss / lugeon testing. Water, fluid mud or air can be used as the flushing medium. S Geobor can be adapted to almost all soil and rock situation using different types and shapes of drill bit.

Size	Hole (mm)	Core (mm)
Geobor S 146 Triple Tube Core Barrel	146	102
Geobor S 146 Triple Tube Core Barrel	176	132

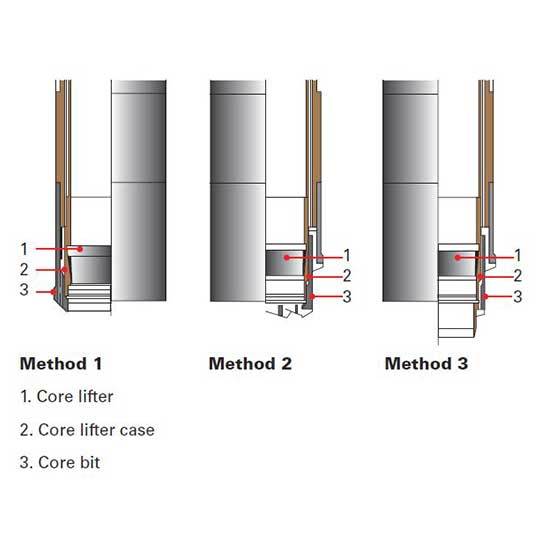

Geobor S 146 Wireline Triple Tube Core Barrel Applications Methods:
